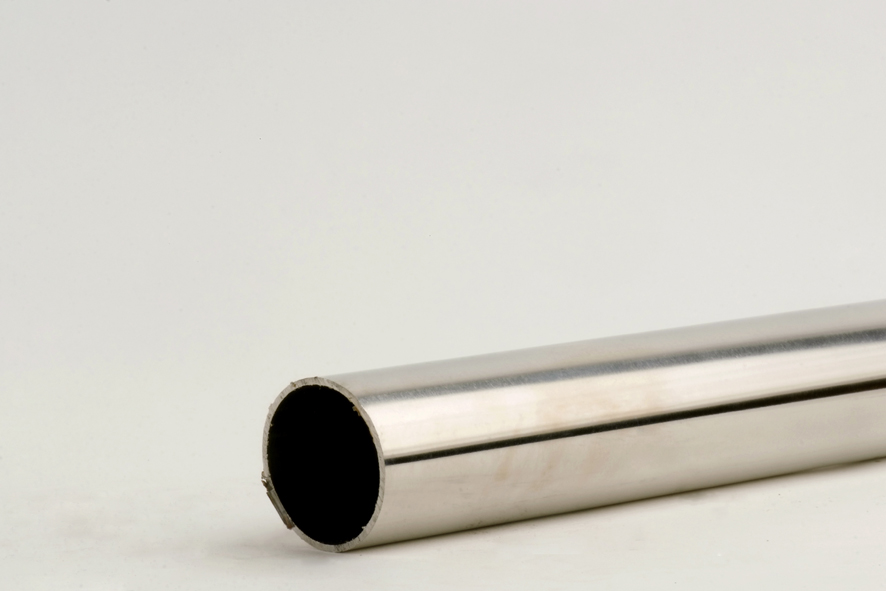

Tubi tondi elettrouniti
3
DIMENSIONI SPESS. 1 SPESS. 1,2 SPESS. 1,5 SPESS. 2 SPESS. 2,5 SPESS. 3 SPESS. 4 SPESS. 5
6 0,125 0,144 0,169
8 0,175 0,204 0,244
10 0,225 0,264 0,319
12 0,275 0,325 0,394
14 0,326 0,385 0,470
15 0,351 0,415 0,507 0,651
16 0,376 0,445 0,545 0,701
17,2 0,406 0,481 0,590 0,761
18 0,426 0,505 0,620 0,801
19,05 0,452 0,536 0,659 0,854
20 0,476 0,565 0,695 0,901
21,3 0,508 0,604 0,744 0,967 1,177 1,375
22 0,526 0,625 0,770 1,002 1,221 1,427 1,803 2,128
25 0,601 0,715 0,883 1,152 1,409 1,653 2,103 2,504
25,4 0,611 0,727 0,898 1,172 1,434 1,683 2,143 2,554
26,9 0,649 0,772 0,954 1,247 1,527 1,795 2,294 2,742
28 0,676 0,805 0,995 1,302 1,596 1,878 2,404 2,880
30 0,726 0,865 1,070 1,402 1,722 2,028 2,604 3,130
32 0,776 0,925 1,146 1,502 1,847 2,178 2,804 3,380
33,7 0,819 0,977 1,209 1,588 1,593 2,306 2,975 3,593
34 0,826 0,986 1,221 1,603 1,972 2,329 3,005 3,631
35 0,851 1,016 1,258 1,653 2,035 2,404 3,105 3,756
38,1 0,929 1,109 1,375 1,808 2,229 2,637 3,415 4,144
40 0,977 1,166 1,446 1,903 2,348 2,779 3,606 4,382
42,4 1,037 1,238 1,536 2,023 2,498 2,960 3,846 4,682
45 1,102 1,316 1,634 2,153 2,661 3,155 4,107 5,008
48,3 1,184 1,415 1,758 2,319 2,867 3,403 4,437 5,421
50 1,227 1,466 1,822 2,404 2,974 3,531 4,607 5,634
50,8 1,247 1,49 1,852 2,444 3,024 3,591 4,687 5,734
52 1,277 1,526 1,897 2,504 3,099 3,681 4,808 5,884
54 1,327 1,587 1,972 2,604 3,224 3,831 5,008 6,135
60,3 1,485 1,776 2,209 2,920 3,618 4,304 5,639 6,924
63,5 1,565 1,872 2,329 3,080 3,819 4,545 5,960 7,324
70 1,728 2,067 2,573 3,405 4,226 5,033 6,611 8,138
76,1 1,881 2,251 2,802 3,711 4,607 5,491 7,222 8,902
80 1,978 2,368 2,948 3,906 4,852 5,784 7,612 9,360
85 2,103 2,518 3,136 4,157 5,165 6,160 8,113 10,160
88,9 2,201 2,635 3,283 4,352 5,409 6,453 8,504 10,504
101,6 2,519 3,017 3,760 4,988 6,204 7,407 9,776 12,094
104 2,579 3,089 3,850 5,108 6,354 7,587 10,16 12,395
108 2,679 3,209 4,000 5,308 6,604 7,888 10,417 12,896
114,3 2,837 3,398 4,237 5,624 6,999 8,361 11,048 13,684
129 3,205 3,840 4,789 6,360 7,919 9,465 12,520 15,525
139,7 3,473 4,162 5,191 6,896 8,589 10,269 13,592 16,864
154 3,831 4,591 5,728 7,612 9,484 11,343 15,024 18,655
168,3 4,189 5,021 6,265 8,328 10,379 12,417 16,456 20,445
204 5,083 6,094 7,606 10,116 12,614 15,099 20,032 24,915
219,1 5,461 6,547 8,173 10,872 13,559 16,233 21,544 26,805
254 6,335 7,596 9,484 12,620 15,744 18,855 25,040 31,175
273 6,811 8,167 10,198 13,572 16,933 20,282 26,943 33,554
304 7,587 9,099 11,362 15,124 18,874 22,611 30,048 37,435
323,9 8,085 9,696 12,109 20,120 20,120 24,106 32,041 39,926
355,6 8,879 10,649 13,300 22,104 22,104 26,487 35,216 43,895
406,4 10,151 12,175 15,208 25,284 25,284 30,303 40,304 50,255
508 12,695 15,228 19,024 31,644 31,644 37,936 50,481 62,976
609,6 15,239 18,281 22,840 38,004 38,004 45,568 60,657 75,696
